Blog Info:

This involves setting up a CI/CD pipeline that executes directly in our GitHub repository. This setup will handle the initialization, planning, and application of our Terraform code.

1. Prerequisites

Below is the list of prerequisites required to create a GitHub Actions CI/CD pipeline:

• Azure Subscription: If we don’t have an Azure subscription, we can create a free account at https://azure.microsoft.com before we start.
• Azure Service Principal: This is an identity used to authenticate to Azure. Below are the instructions for creating one.
• Azure Remote Backend for Terraform: we will store our Terraform state file in a remote backend location. We will need a Resource Group, an Azure Storage Account, and a Container.

2. Configuring the Remote Backend

We will need a place to store the Terraform state so that we will use an Azure Storage Account.

We must create a dedicated resource group, storage account, and a blob container in Azure.

We provide three ways to achieve this: BASH script, PowerShell script, and Terraform code.

2.1. Configuring the Remote Backend to use Azure Storage with Azure CLI and BASH

Execute the following BASH script to create the storage account in Azure CLI or Azure Cloud Shell:

RESOURCE_GROUP_NAME=kopicloud-tstate-rg
STORAGE_ACCOUNT_NAME=kopicloudgitlabtfstate
CONTAINER_NAME=tfstate

# Create resource group
az group create --name $RESOURCE_GROUP_NAME --location "West Europe"

# Create storage account
az storage account create --resource-group $RESOURCE_GROUP_NAME --name $STORAGE_ACCOUNT_NAME --sku Standard_LRS --encryption-services blob

# Get storage account key
ACCOUNT_KEY=$(az storage account keys list --resource-group $RESOURCE_GROUP_NAME --account-name $STORAGE_ACCOUNT_NAME --query [0].value -o tsv)

# Create blob container
az storage container create --name $CONTAINER_NAME --account-name $STORAGE_ACCOUNT_NAME --account-key $ACCOUNT_KEY

echo "storage_account_name: $STORAGE_ACCOUNT_NAME"
echo "container_name: $CONTAINER_NAME"
echo "access_key: $ACCOUNT_KEY"

2.2. Configuring the Remote Backend to use Azure Storage with PowerShell

Execute the following Azure PowerShell script to create the storage account in Azure Storage:

# Variables
$azureSubscriptionId = "9c242362-6776-47d9-9db9-2aab2449703"
$resourceGroup = "kopicloud-tstate-rg"
$location = "westeurope"
$accountName = "kopicloudgitlabtfstate"
$containerName = "tfstate"

# Set Default Subscription
Select-AzSubscription -SubscriptionId $azureSubscriptionId

# Create Resource Group
New-AzResourceGroup -Name $resourceGroup -Location $location -Force

# Create Storage Account
$storageAccount = New-AzStorageAccount -ResourceGroupName $resourceGroup `
  -Name $accountName `
  -Location $location `
  -SkuName Standard_RAGRS `
  -Kind StorageV2

# Get Storage Account Key
$storageKey = (Get-AzStorageAccountKey -ResourceGroupName $resourceGroup `
  -Name $accountName).Value[0]

# Create Storage Container
$ctx = $storageAccount.Context
$container = New-AzStorageContainer -Name $containerName `
  -Context $ctx -Permission blob

# Results
Write-Host
Write-Host ("Storage Account Name: " + $accountName)
Write-Host ("Container Name: " + $container.Name)
Write-Host ("Access Key: " + $storageKey)

2.3. Configuring the Remote Backend to use Azure Storage with Terraform

We can also use Terraform to create the storage account in Azure Storage.

First, we will create a file for the Terraform and Azure providers called provider.tf, and we will add the following code:

terraform {
  required_providers {
    azurerm = {
      source = "hashicorp/azurerm"
        version = "~> 3.0"
    }
  }
}

provider "azurerm" {
  features {}
}

After that, we create a file called variables.tf, and add this code:

# azure region
variable "location" {
  type        = string
  description = "Azure region where resources will be created"
  default     = "west europe"
}

Then, we create the main.tf file that will configure the storage account:

# Create a Resource Group for the Terraform State File
resource "azurerm_resource_group" "state-rg" {
  name     = "kopicloud-tfstate-rg"
  location = var.location
}

# Create a Storage Account for the Terraform State File
resource "azurerm_storage_account" "state-sta" {
  depends_on = [azurerm_resource_group.state-rg]

  name                = "kopicloudgitlabtfstate"
  resource_group_name = azurerm_resource_group.state-rg.name
  location            = azurerm_resource_group.state-rg.location

  account_kind = "StorageV2"
  account_tier = "Standard"
  access_tier  = "Hot"

  account_replication_type  = "ZRS"
  enable_https_traffic_only = true
}

# Create a Storage Container for the Core State File
resource "azurerm_storage_container" "core-container" {
  depends_on = [azurerm_storage_account.state-sta]

  name                 = "tfstate"
  storage_account_name = azurerm_storage_account.state-sta.name
}

Finally, we create the file output.tf file that will show the output:

output "terraform_state_resource_group_name" {
  value = azurerm_resource_group.state-rg.name
}

output "terraform_state_storage_account" {
  value = azurerm_storage_account.state-sta.name
}

output "terraform_state_storage_container_core" {
  value = azurerm_storage_container.core-container.name
}

3. Creating our GitHub Repository

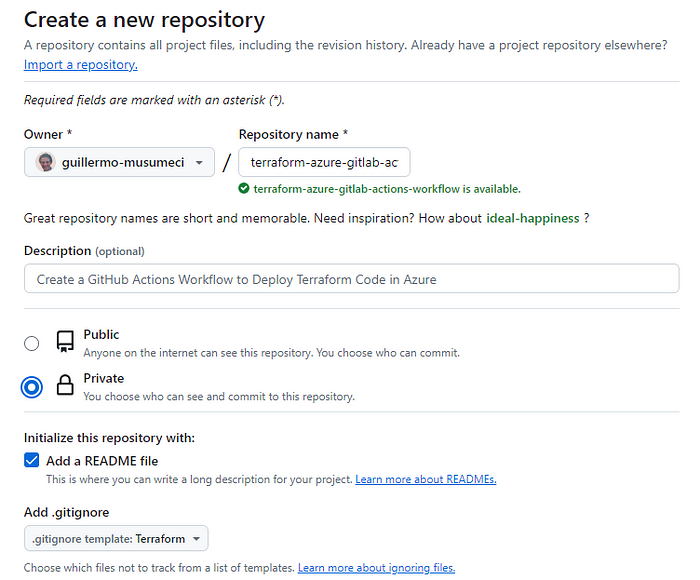

The first (optional) step is to create a GitHub Repo:

Then, in the next step, we will create a simple code to validate the Terraform deployment.

4. Adding Sample Terraform Code

First, we will add a main.tf file to create a Resource Group, a VNET, and a Subnet.

# Create the Resource Group
resource "azurerm_resource_group" "this" {
  name     = "kopicloud-github-actions-rg"
  location = "west europe"
}

# Create the VNET
resource "azurerm_virtual_network" "this" {
  name                = "kopicloud-github-actions-vnet"
  address_space       = ["10.10.10.0/16"]
  resource_group_name = azurerm_resource_group.this.name
  location            = azurerm_resource_group.this.location
}

# Create the Subnet
resource "azurerm_subnet" "this" {
  name                 = "kopicloud-github-actions-subnet"
  address_prefixes     = ["10.10.10.0/24"]
  virtual_network_name = azurerm_virtual_network.this.name
  resource_group_name  = azurerm_resource_group.this.name
}

Then, there is a file provider.tf with references to the Terraform and Azure providers.

# Define the Terraform provider
terraform {
  required_providers {
    azurerm = {
      source = "hashicorp/azurerm"
        version = "~> 3.100"
      }
  }
  backend "azurerm" {
    key = "demo.tfstate"
  }
}

# Define the Azure provider
provider "azurerm" {
  features {}
  environment = "public"
}

5. Creating an Azure Service Principal

Using a Service Principal, or SPN, is a best practice for DevOps or CI/CD environments.

First, we log into Azure, open the Azure Shell Cloud (or the Azure CLI), and select BASH.

After that, we are ready to start.

We will use the following command to get the list of Azure subscriptions:

az account list --output table

We can select the subscription using the following command (both subscription ID and subscription name are accepted):

az account set --subscription <Azure-SubscriptionId>

Then, we create the service principal account using the following command:

az ad sp create-for-rbac --role="Contributor" --name="Terraform" --scopes="/subscriptions/SUBSCRIPTION_ID"

Below is the result of the execution:

{
  "appId": "43cbab46-8ef2-4f3e-b2ca-9ac33cb02369",
  "displayName": "Terraform",
  "password": "-lo8Q~xIjKpffrjGORmg6q79nzGLK3sq1Jb-gbLL",
  "tenant": "6795c202-cca8-18a9-cb61-d75a46b35eaf"
}

These values will be mapped to these Terraform variables:

• appId (Azure) → client_id (Terraform).
• password (Azure) → client_secret (Terraform).
• tenant (Azure) → tenant_id (Terraform).

6. Configuring GitHub Repository Secrets

We add the following secrets to our GitHub repository.

We navigate to Settings > Security; then, we expand the Secrets and variablesoption.

We click on the Actions menu and, after that, on the New repository secret button to add a secret.

Below is the list of secrets we need to add to Actions Secrets:

• ARM_CLIENT_ID: Our service principal appId (from the previous step).
• ARM_CLIENT_SECRET: Our service principal password (from the previous step).
• ARM_SUBSCRIPTION_ID: Our Azure subscription ID (from the previous step).
• ARM_TENANT_ID: Our tenant ID (from the previous step).
• STORAGE_ACCOUNT: Our Azure storage account name (from step 2).
• RESOURCE_GROUP: The resource group of our storage account (from step 2).
• CONTAINER_NAME: Our blob container name (from step 2).

And this is it:

7. Creating the Azure GitHub Actions Workflow File

We create a file named terraform.yml within the .github/workflows directory, and we add this content:

name: 'Terraform'

on: [push, pull_request]

env:
  TF_LOG: INFO
  ARM_CLIENT_ID: ${{ secrets.ARM_CLIENT_ID }}
  ARM_CLIENT_SECRET: ${{ secrets.ARM_CLIENT_SECRET }}
  ARM_TENANT_ID: ${{ secrets.ARM_TENANT_ID }}
  ARM_SUBSCRIPTION_ID: ${{ secrets.ARM_SUBSCRIPTION_ID }}
  RESOURCE_GROUP: ${{ secrets.RESOURCE_GROUP }}
  STORAGE_ACCOUNT: ${{ secrets.STORAGE_ACCOUNT }}
  CONTAINER_NAME: ${{ secrets.CONTAINER_NAME }}

jobs:
  terraform:
    name: 'Terraform'
    runs-on: ubuntu-latest

    defaults:
      run:
        shell: bash

    steps:
    # Checkout the repository to the GitHub Actions runner
    - name: Checkout
      uses: actions/checkout@v4

    # Install the preferred version of Terraform CLI
    - name: Setup Terraform
      uses: hashicorp/setup-terraform@v3
      with:
        terraform_version: 1.8.2

    # Initialize Terraform with an Azure storage account to store the Terraform State
    - name: Terraform Init
      id: init
      run: terraform init -backend-config="storage_account_name=$STORAGE_ACCOUNT" -backend-config="container_name=$CONTAINER_NAME" -backend-config="resource_group_name=$RESOURCE_GROUP"

    # Run Terraform plan for pull requests only
    - name: Terraform Plan
      if: github.event_name == 'pull_request'
      id: plan
      run: terraform plan -no-color

    # Run Terraform apply for push to the main branch
    - name: Terraform Apply
      if: github.ref == 'refs/heads/main' && github.event_name == 'push'
      run: terraform apply -auto-approve

8. Explanation of Workflow Steps

The first section will define the workflow triggers. We are set to trigger push or pull request events for the main branch.

Also, we are setting the Terraform logging level for INFO, and all the variables we are using in the workflow.

name: 'Terraform'

on: [push, pull_request]

env:
  TF_LOG: INFO
  ARM_CLIENT_ID: ${{ secrets.ARM_CLIENT_ID }}
  ARM_CLIENT_SECRET: ${{ secrets.ARM_CLIENT_SECRET }}
  ARM_TENANT_ID: ${{ secrets.ARM_TENANT_ID }}
  ARM_SUBSCRIPTION_ID: ${{ secrets.ARM_SUBSCRIPTION_ID }}
  RESOURCE_GROUP: ${{ secrets.RESOURCE_GROUP }}
  STORAGE_ACCOUNT: ${{ secrets.STORAGE_ACCOUNT }}
  CONTAINER_NAME: ${{ secrets.CONTAINER_NAME }}

The next step is to define the jobs. We will create one job that will run it on a GitHub-hosted runner using the latest Ubuntu machine, and we are setting the shell to bash.

jobs:
  terraform:
    name: 'Terraform'
    runs-on: ubuntu-latest

    defaults:
      run:
        shell: bash

After that, it is time for the initialization. The checkout step performs a checkout of the code in our repository, and the setup-terraform step installs the Terraform binary on the GitHub runner.

steps:
    # Checkout the repository to the GitHub Actions runner
    - name: Checkout
      uses: actions/checkout@v4

    # Install the preferred version of Terraform CLI
    - name: Setup Terraform
      uses: hashicorp/setup-terraform@v3
      with:
        terraform_version: 1.8.2

The next step is to run the terraform init command to initialize the Terraform with an Azure Storage Account. We will use this Storage Account to store the Terraform State.

# Initialize Terraform with an Azure storage account to store the Terraform State
- name: Terraform Init
  id: init
  run: terraform init -backend-config="storage_account_name=$STORAGE_ACCOUNT" -backend-config="container_name=$CONTAINER_NAME" -backend-config="resource_group_name=$RESOURCE_GROUP"

Following is the terraform plan step. The workflow checks if this is a pull request event; in that case, we run the terraform plan command.

The terraform plan command creates an execution plan, previewing the changes Terraform plans to make to our infrastructure.

# Run Terraform plan for pull requests only
- name: Terraform Plan
  if: github.event_name == 'pull_request'
  id: plan
  run: terraform plan -no-color

The terraform apply step will create, update, or destroy our Azure infrastructure.

This step is conditional and runs only on pushes to main branch to avoid accidental deployments.

# Run Terraform apply for push to the main branch
- name: Terraform Apply
  if: github.ref == 'refs/heads/main' && github.event_name == 'push'
  run: terraform apply -auto-approve

9. Executing the CI/CD Pipeline

After we commit the workflow file to the repo, the CI/CD will be executed for the first time.

If we click on the workflow run result, we can see the execution details:

Finally, we click on the Terraform label (next to the green check), and we can see all the steps executed by the pipeline:

The complete code is available at HERE
